Logto is an Auth0 alternative designed for modern apps and SaaS products. It offers both Cloud and Open-source services to help you quickly launch your identity and management (IAM) system. Enjoy authentication, authorization, and multi-tenant management all in one.

We recommend starting with a free development tenant on Logto Cloud. This allows you to explore all the features easily.

In this article, we will go through the steps to quickly build the OAuth2 sign-in experience (user authentication) with Android (Kotlin / Java) and Logto.

Prerequisites

• A running Logto instance. Check out the introduction page to get started.
• Basic knowledge of Android (Kotlin / Java).
• A usable OAuth2 account.

Create an application in Logto

Logto is based on OpenID Connect (OIDC) authentication and OAuth 2.0 authorization. It supports federated identity management across multiple applications, commonly called Single Sign-On (SSO).

To create your Native app application, simply follow these steps:

1. Open the Logto Console. In the "Get started" section, click the "View all" link to open the application frameworks list. Alternatively, you can navigate to Logto Console > Applications, and click the "Create application" button.
2. In the opening modal, click the "Native app" section or filter all the available "Native app" frameworks using the quick filter checkboxes on the left. Click the "Android" framework card to start creating your application.
3. Enter the application name, e.g., "Bookstore," and click "Create application".

🎉 Ta-da! You just created your first application in Logto. You'll see a congrats page which includes a detailed integration guide. Follow the guide to see what the experience will be in your application.

Integrate Android with Logto

tip:

• The example is based on View system and View Model, but the concepts are the same when using Jetpack Compose.
• The example is written in Kotlin, but the concepts are the same for Java.
• Both Kotlin and Java sample projects are available on our SDK repository.
• The tutorial video is available on our YouTube channel.

Installation

note:

The minimum supported Android API level of Logto Android SDK is level 24.

Before you install Logto Android SDK, ensure mavenCentral() is added to your repository configuration in the Gradle project build file:

settings.gradle.kts

dependencyResolutionManagement {
  repositories {
    mavenCentral()
  }
}

Add Logto Android SDK to your dependencies:

Kotlin

build.gradle.kts

dependencies {
  implementation("io.logto.sdk:android:1.1.3")
}

Groovy

build.gradle

dependencies {
  implementation 'io.logto.sdk:android:1.1.3'
}

Since the SDK needs internet access, you need to add the following permission to your AndroidManifest.xml file:

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools">

  <!-- add internet permission -->
  <uses-permission android:name="android.permission.INTERNET" />

  <!-- other configurations... -->
</manifest>

Init LogtoClient

Create a LogtoViewModel.kt and init LogtoClient in this view model:

LogtoViewModel.kt

//...with other imports
import io.logto.sdk.android.LogtoClient
import io.logto.sdk.android.type.LogtoConfig

class LogtoViewModel(application: Application) : AndroidViewModel(application) {
    private val logtoConfig = LogtoConfig(
          endpoint = "<your-logto-endpoint>",
          appId = "<your-app-id>",
          scopes = null,
          resources = null,
          usingPersistStorage = true,
    )

    private val logtoClient = LogtoClient(logtoConfig, application)

    companion object {
        val Factory: ViewModelProvider.Factory = object : ViewModelProvider.Factory {
            @Suppress("UNCHECKED_CAST")
            override fun <T : ViewModel> create(
                modelClass: Class<T>,
                extras: CreationExtras
            ): T {
                // Get the Application object from extras
                val application = checkNotNull(extras[APPLICATION_KEY])
                return LogtoViewModel(application) as T
            }
        }
    }
}

then, create a LogtoViewModel for your MainActivity.kt:

MainActivity.kt

//...with other imports
class MainActivity : AppCompatActivity() {
    private val logtoViewModel: LogtoViewModel by viewModels { LogtoViewModel.Factory }
    //...other codes
}

Configure redirect URI

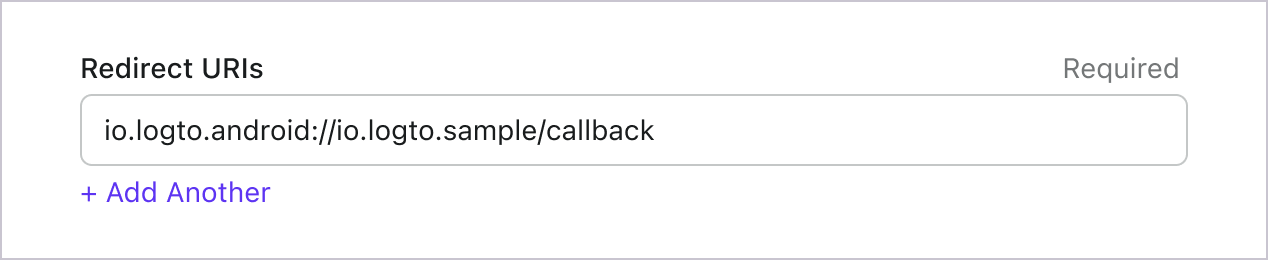

Let's switch to the Application details page of Logto Console. Add a Redirect URI io.logto.android://io.logto.sample/callback and click "Save changes".

Implement sign-in and sign-out

note:

Before calling logtoClient.signIn, make sure you have correctly configured Redirect URI in Admin Console.

You can use logtoClient.signIn to sign in the user and logtoClient.signOut to sign out the user.

For example, in an Android app:

LogtoModelView.kt

//...with other imports
class LogtoViewModel(application: Application) : AndroidViewModel(application) {
    // ...other codes

    // Add a live data to observe the authentication status
    private val _authenticated = MutableLiveData(logtoClient.isAuthenticated)
    val authenticated: LiveData<Boolean>
        get() = _authenticated

    fun signIn(context: Activity) {
        logtoClient.signIn(context, "io.logto.android://io.logto.sample/callback") { logtoException ->
            logtoException?.let { println(it) }
            // Update the live data
            _authenticated.postValue(logtoClient.isAuthenticated)
        }
    }

    fun signOut() {
        logtoClient.signOut { logtoException ->
            logtoException?.let { println(it) }
            // Update the live data
            _authenticated.postValue(logtoClient.isAuthenticated)
        }
    }
}

Then call the signIn and signOut methods in your activity:

MainActivity.kt

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        //...other codes

        // Assume you have a button with id "sign_in_button" in your layout
        val signInButton = findViewById<Button>(R.id.sign_in_button)
        signInButton.setOnClickListener {
            logtoViewModel.signIn(this)
        }

        // Assume you have a button with id "sign_out_button" in your layout
        val signOutButton = findViewById<Button>(R.id.sign_out_button)
        signOutButton.setOnClickListener {
            if (logtoViewModel.authenticated) { // Check if the user is authenticated
                logtoViewModel.signOut()
            }
        }

        // Observe the authentication status to update the UI
        logtoViewModel.authenticated.observe(this) { authenticated ->
            if (authenticated) {
                // The user is authenticated
                signInButton.visibility = View.GONE
                signOutButton.visibility = View.VISIBLE
            } else {
                // The user is not authenticated
                signInButton.visibility = View.VISIBLE
                signOutButton.visibility = View.GONE
            }
        }

    }
}

Checkpoint: Test your application

Now, you can test your application:

1. Run your application, you will see the sign-in button.
2. Click the sign-in button, the SDK will init the sign-in process and redirect you to the Logto sign-in page.
3. After you signed in, you will be redirected back to your application and see the sign-out button.
4. Click the sign-out button to clear token storage and sign out.

Add OAuth2 connector

To enable quick sign-in and improve user conversion, connect with Android as an identity provider. The Logto social connector helps you establish this connection in minutes by allowing several parameter inputs.

To add a social connector, simply follow these steps:

1. Navigate to Console > Connectors > Social Connectors.
2. Click "Add social connector" and select "OAuth2".
3. Follow the README guide and complete required fields and customize settings.

note:

If you are following the in-place Connector guide, you can skip the next section.

Set up Standard OAuth 2.0 app

Create your OAuth app

When you open this page, we believe you already know which social identity provider you want to connect to. The first thing to do is to confirm that the identity provider supports the OAuth protocol, which is a prerequisite for configuring a valid connector. Then, follow the identity provider's instructions to register and create the relevant app for OAuth authorization.

Configure your connector

We ONLY support "Authorization Code" grant type for security consideration and it can perfectly fit Logto's scenario.

clientId and clientSecret can be found at your OAuth apps details page.

clientId: The client ID is a unique identifier that identifies the client application during registration with the authorization server. This ID is used by the authorization server to verify the identity of the client application and to associate any authorized access tokens with that specific client application.

clientSecret: The client secret is a confidential key that is issued to the client application by the authorization server during registration. The client application uses this secret key to authenticate itself with the authorization server when requesting access tokens. The client secret is considered confidential information and should be kept secure at all times.

tokenEndpointAuthMethod: The token endpoint authentication method is used by the client application to authenticate itself with the authorization server when requesting access tokens. To discover supported methods, consult the token_endpoint_auth_methods_supported field available at the OAuth 2.0 service provider’s OpenID Connect discovery endpoint, or refer to the relevant documentation provided by the OAuth 2.0 service provider.

clientSecretJwtSigningAlgorithm (Optional): Only required when tokenEndpointAuthMethod is client_secret_jwt. The client secret JWT signing algorithm is used by the client application to sign the JWT that is sent to the authorization server during the token request.

scope: The scope parameter is used to specify the set of resources and permissions that the client application is requesting access to. The scope parameter is typically defined as a space-separated list of values that represent specific permissions. For example, a scope value of "read write" might indicate that the client application is requesting read and write access to a user's data.

You are expected to find authorizationEndpoint, tokenEndpoint and userInfoEndpoint in social vendor's documentation.

authenticationEndpoint: This endpoint is used to initiate the authentication process. The authentication process typically involves the user logging in and granting authorization for the client application to access their resources.

tokenEndpoint: This endpoint is used by the client application to obtain an access token that can be used to access the requested resources. The client application typically sends a request to the token endpoint with a grant type and authorization code to receive an access token.

userInfoEndpoint: This endpoint is used by the client application to obtain additional information about the user, such as their fullname, email address or profile picture. The user info endpoint is typically accessed after the client application has obtained an access token from the token endpoint.

Logto also provide a profileMap field that users can customize the mapping from the social vendors' profiles which are usually not standard. The keys are Logto's standard user profile field names and corresponding values should be social profiles' field names. In current stage, Logto only concern 'id', 'name', 'avatar', 'email' and 'phone' from social profile, only 'id' is required and others are optional fields.

responseType and grantType can ONLY be FIXED values with authorization code grant type, so we make them optional and default values will be automatically filled.

For example, you can find Google user profile response and hence its profileMap should be like:

{
  "id": "sub",
  "avatar": "picture"
}

note:

We provided an OPTIONAL customConfig key to put your customize parameters. Each social identity provider could have their own variant on OAuth standard protocol. If your desired social identity provider strictly stick to OAuth standard protocol, the you do not need to care about customConfig.

Config types

Name	Type	Required
authorizationEndpoint	string	true
userInfoEndpoint	string	true
clientId	string	true
clientSecret	string	true
tokenEndpointResponseType	enum	false
responseType	string	false
grantType	string	false
tokenEndpoint	string	false
scope	string	false
customConfig	Record<string, string>	false
profileMap	ProfileMap	false

ProfileMap fields	Type	Required	Default value
id	string	false	id
name	string	false	name
avatar	string	false	avatar
email	string	false	email
phone	string	false	phone

General settings

Here are some general settings that won't block the connection to your identity provider but may affect the end-user authentication experience.

Social button name and logo

If you want to display a social button on your login page, you can set the name and logo (dark mode and light mode) of the social identity provider. This will help users recognize the social login option.

Identity provider name

Each social connector has a unique Identity Provider (IdP) name to differentiate user identities. While common connectors use a fixed IdP name, custom connectors require a unique value. Learn more about IdP names for more details.

Sync profile information

In the OAuth connector, you can set the policy for syncing profile information, such as user names and avatars. Choose from:

• Only sync at sign-up: Profile info is fetched once when the user first signs in.
• Always sync at sign-in: Profile info is updated every time the user signs in.

Store tokens to access third-party APIs (Optional)

If you want to access the Identity Provider's APIs and perform actions with user authorization (whether via social sign-in or account linking), Logto needs to get specific API scopes and store tokens.

1. Add the required scopes in the scope field following the instructions above
2. Enable Store tokens for persistent API access in the Logto OAuth connector. Logto will securely store access tokens in the Secret Vault.
3. For standard OAuth/OIDC identity providers, the offline_access scope must be included to obtain a refresh token, preventing repeated user consent prompts.

warning:

Keep your client secret secure and never expose it in client-side code. If compromised, generate a new one immediately in your identity provider's app settings.

Utilize the OAuth connector

Once you've created an OAuth connector and connected it to your identity provider, you can incorporate it into your end-user flows. Choose the options that match your needs:

Enable social sign-in button

1. In Logto Console, go to Sign-in experience > Sign-up and sign-in.
2. Add the OAuth connector under Social sign-in section to let users authenticate with your identity provider.

Learn more about social sign-in experience.

Link or unlink a social account

Use the Account API to build a custom Account Center in your app that lets signed-in users link or unlink their social accounts. Follow the Account API tutorial

tip:

It's allowed to enable the OAuth connector only for account linking and API access, without enabling it for social sign-in.

Access identity provider APIs and perform actions

Your application can retrieve stored access tokens from the Secret Vault to call your identity provider's APIs and automate backend tasks. The specific capabilities depend on your identity provider and the scopes you've requested. Refer to the guide on retrieving stored tokens for API access.

Manage user's social identity

After a user links their social account, admins can manage that connection in the Logto Console:

1. Navigate to Logto console > User management and open the user's profile.
2. Under Social connections, locate the identity provider item and click Manage.
3. On this page, admins can manage the user's social connection, see all profile information granted and synced from their social account, and check the access token status.

note:

A few Identity Provider access token response does not include the specific scope information, so Logto cannot directly display the list of permissions granted by the user. However, as long as the user has consented to the requested scopes during authorization, your application will have the corresponding permissions when accessing the OAuth API.

Save your configuration

Double check you have filled out necessary values in the Logto connector configuration area. Click "Save and Done" (or "Save changes") and the OAuth2 connector should be available now.

Enable OAuth2 connector in Sign-in Experience

Once you create a social connector successfully, you can enable it as a "Continue with OAuth2" button in Sign-in Experience.

1. Navigate to Console > Sign-in experience > Sign-up and sign-in.
2. (Optional) Choose "Not applicable" for sign-up identifier if you need social login only.
3. Add configured OAuth2 connector to the "Social sign-in" section.

Testing and Validation

Return to your Android (Kotlin / Java) app. You should now be able to sign in with OAuth2. Enjoy!

Further readings

End-user flows: Logto provides a out-of-the-box authentication flows including MFA and enterprise SSO, along with powerful APIs for flexible implementation of account settings, security verification, and multi-tenant experience.

Authorization: Authorization defines the actions a user can do or resources they can access after being authenticated. Explore how to protect your API for native and single-page applications and implement Role-based Access Control (RBAC).

Organizations: Particularly effective in multi-tenant SaaS and B2B apps, the organization feature enable tenant creation, member management, organization-level RBAC, and just-in-time-provisioning.

Customer IAM series Our serial blog posts about Customer (or Consumer) Identity and Access Management, from 101 to advanced topics and beyond.
